Network Segmentation Strategy for Azure: Best Practices and Troubleshooting Tips

Many organisations moving to Azure networking often try to duplicate their legacy on-premises methods. While it may seem logical to assign a dedicated VNet or subnet for each application, this approach can generate more complexity than efficiency. You may quickly run into management headaches, excess maintenance overhead, and lose out on Azure’s signature scalability and flexibility.

To thrive in the cloud, understanding how networking works in Azure is crucial. The cloud operates on dynamic foundations, so your network design must be built for secure, adaptable, and scalable management. Azure delivers a vast toolkit that makes network segmentation straightforward and effective. This article presents a practical network segmentation strategy for Azure, helping you design virtual networks that are efficient, secure, and suitable for growth.

Why Use a Network Segmentation Strategy for Azure?

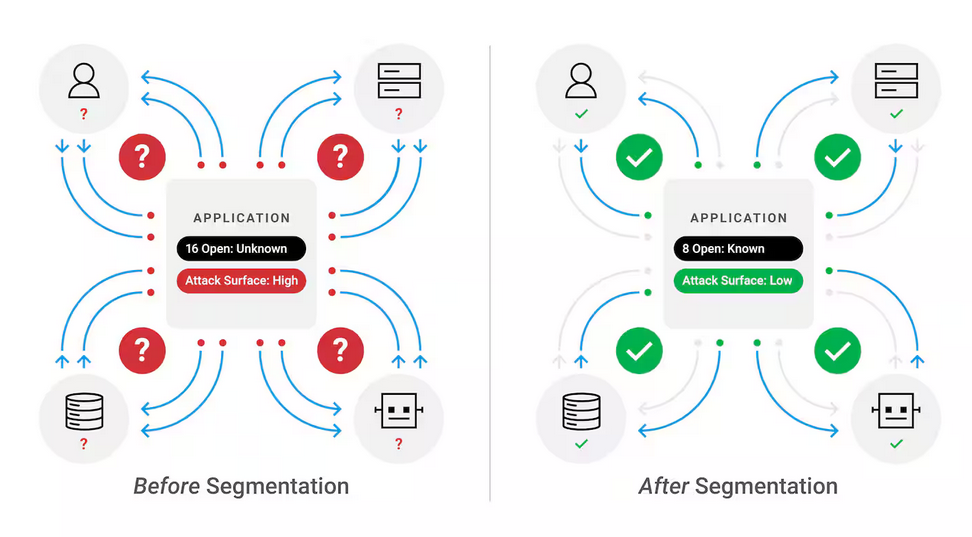

Segmenting your network within Azure brings many crucial benefits, from security to operational ease. Here’s what you can gain by adopting a clear network segmentation strategy for Azure:

• Stronger Security: Separating sensitive resources helps contain threats and reduces opportunities for lateral attacks if one system is compromised.
• Better Performance: By managing traffic flow, you can ensure critical applications run smoothly and avoid slowdowns from less important services.
• Simpler Compliance: Each segment can have targeted controls for handling regulated data, making it easier to meet security requirements and monitor sensitive assets.
• Easier Management: Dividing complex environments into logical units makes it simpler to apply access controls, review activity, and assign responsibility.

Essential Parts of a Network Segmentation Strategy for Azure

Azure includes several robust features to support a healthy network segmentation strategy for Azure. Here are the fundamental components and how to use each one effectively:

1. Virtual Networks (VNets)

VNets are the heart of your virtual environment in Azure. Think of them as self-contained zones where you define how your Azure resources interact. Segmenting a VNet into smaller areas improves control and isolation.

• Use different VNets for development, test, and production environments.
• Segment workloads by function or required security level.
• Design VNet connectivity carefully when spanning regions or integrating with on-premises networks.

Troubleshooting tip: If resources can’t communicate across VNets, ensure VNet peering or VPN gateways are correctly set up.

2. Subnets

Subnets break down your VNets even further. Each can have its own security and routing policies, making it easy to apply granular controls.

• Place highly sensitive services in separate subnets secured by strict NSGs.
• Create subnets for particular workloads, like web servers or databases.
• Leave space in your address planning for eventual growth to avoid overlapping IP ranges later.

Troubleshooting tip: If services in different subnets cannot connect, double-check subnet NSG and route table configurations.

3. Network Security Groups (NSGs)

NSGs act as virtual firewalls, controlling which traffic is allowed in and out of each subnet or network interface.

• Limit access by only permitting essential ports and protocols.
• Apply NSGs to both subnets and individual network interfaces as needed.
• Regularly review and clean up unneeded NSG rules for better security.

Troubleshooting tip: When connectivity fails, review NSG logs and rules to pinpoint any unintended blocks.

4. Azure Firewall

Azure Firewall provides centralised, cloud-based protection with consistent security policies for all your network segments.

• Set Azure Firewall as the main gateway in and out of your networks to streamline security controls.
• Turn on features like FQDN filtering, application rules, and threat intelligence for added defence.
• Use Firewall Policy for easy rule management across your entire environment.

Troubleshooting tip: Check firewall logs to identify blocked traffic and fine-tune rules for required services.

5. Private Endpoints

Private Endpoints give your resources secure, private access to Azure services within your VNet, keeping sensitive data traffic off the public internet.

• Use private endpoints to secure access to databases and storage accounts.
• Configure private DNS zones for smooth resolution of private addresses.
• Combine with Azure Bastion for safe, browser-based connectivity to VMs.

Troubleshooting tip: If resources can’t access Azure services, ensure private endpoints are configured and DNS is resolving correctly.

6. Azure Bastion

Azure Bastion helps you securely connect to virtual machines over RDP or SSH, directly from the Azure portal, without exposing public IPs.

• Rely on Bastion for secure admin tasks in critical subnets.
• Keep Bastion hosts in their own subnet and strictly control access to them.

Troubleshooting tip: Confirm Bastion is deployed properly if you can’t reach your VMs via the Azure console.

7. Azure Virtual WAN (vWAN)

Azure vWAN connects all your networks—across regions and with your data centre—under one simplified platform.

• Centralise management for large or distributed networks.
• Adopt a hub-and-spoke layout with the hub as your traffic and security checkpoint.

Troubleshooting tip: For connectivity issues between sites, verify your vWAN routing and site links are active.

Best Practices for a Network Segmentation Strategy for Azure

1. Segment by Use and Security: Put resources with similar requirements into dedicated VNets and subnets to keep access clear and secure.
2. Leverage Hub-and-Spoke Topology: This model separates core security and shared services from application workloads for easier management.
3. Utilise Peering and Service Endpoints: Use VNet peering for safe traffic flow and service endpoints to lock Azure service access to your network.
4. Implement Zero Trust Principles: Never assume trust, apply strong access controls everywhere, and monitor activity constantly.
5. Carry Out Regular Reviews: Frequently audit and update your segmentation, NSGs, and firewall rules to close any gaps before threats arise.

Conclusion

A solid network segmentation strategy for Azure is the foundation of secure, agile, and manageable cloud infrastructure. Segmenting networks, setting up rigorous access controls, and using Azure’s specialised tools lets you shield your most sensitive data and run operations efficiently. By following these best practices, you can build a robust architecture tailored for your organisation’s unique needs. Whether you’re handling hybrid environments or sensitive workloads, Azure’s network segmentation features equip you with the adaptability required for ongoing success.
